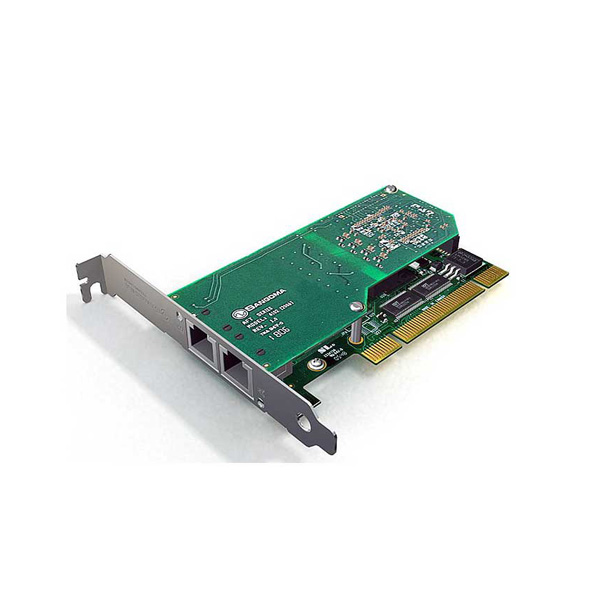

کارت ترکیبی آنالوگ و دیجیتال تلفنی سنگوما B700D با اکو کنسلر سخت افزاری PCI

توضیحات

– کارت تلفنی استریسک ماژولار

– قابلیت اتصال تا 4 پورت BRI و ماکزیمم 2 پورت FXS یا FXO

– قابل اتصال با سوکت PCI به تمامی مادربوردهای موجود در بازار

– دارای اکو کنسلر سخت افزاری برای کاهش پردازش CPU و افزایش کیفیت تماس

– تشخیض سخت افزاری دیتاهای فکس

– مناسب برای شرکت های کوچک برای صرفه جویی در هزینه ها

اطلاعات بیشتر

وزن 500 g
نوع و تعداد پورت های کارت

4 ports of BRI are supported. Mix TE and NT modes, as required. Changing modes requires no jumpers—simply invert the colour-coded module
2 ports of Analog FXS or FXO are supported

مرکز تلفنی های سازگار

Supports Asterisk®, Yate™, FreeSWITCH™, PBX/IVR projects, as well as other Open Source and proprietary PBX, Switch, IVR or VoIP gateway applications

نوع اتصال کارت به سرور

Single PCI or PCI Express interface. Autosense compatibility with 5V and 3.3V PCI busses
Fully PCI 2.2 and PCI Express compliant, compatible with all commercially available motherboards, proper sharing of PCI interrupts
32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention

ابعاد

Dimensions: 2U Form factor: 187mm x 55mm for use in restricted chassis
Short 2U compatible mounting clips included for installation in 2U rackmount servers and high quality, tested 2m 8-pin RJ45 port splitter cables, and two narrow RJ11/4 – RJ11/6 analog cables included

توان مصرفی

Power: 800mA peak, operational 300mA max at +3.3V or 5V

دمای عملکردی

Temperature range: 0° – 50°C

قابلیت های حذف اکو

Telco-grade, hardware echo cancellation is included.

سیستم عامل های سازگار

Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
Linux (all versions, releases and distributions from 1.0 up)

ابزار مدیریت

WANPIPEMON, SNMP, system logs
WANPIPE® supports certified, field tested and reliable Frame Relay, PPP, HDLC and X.25

سایر قابلیت ها

Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
Optimized DMA stream and hardware-level HDLC handling unload the host CPU
Raw bitstream interfaces can be used to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch

گواهینامه ها

FCC Part 15 Class A, FCC Part 68, CE, TBR 1
ISO 9002

گارانتی

یک سال
